FOOT MOUNTED GEARED MOTORS

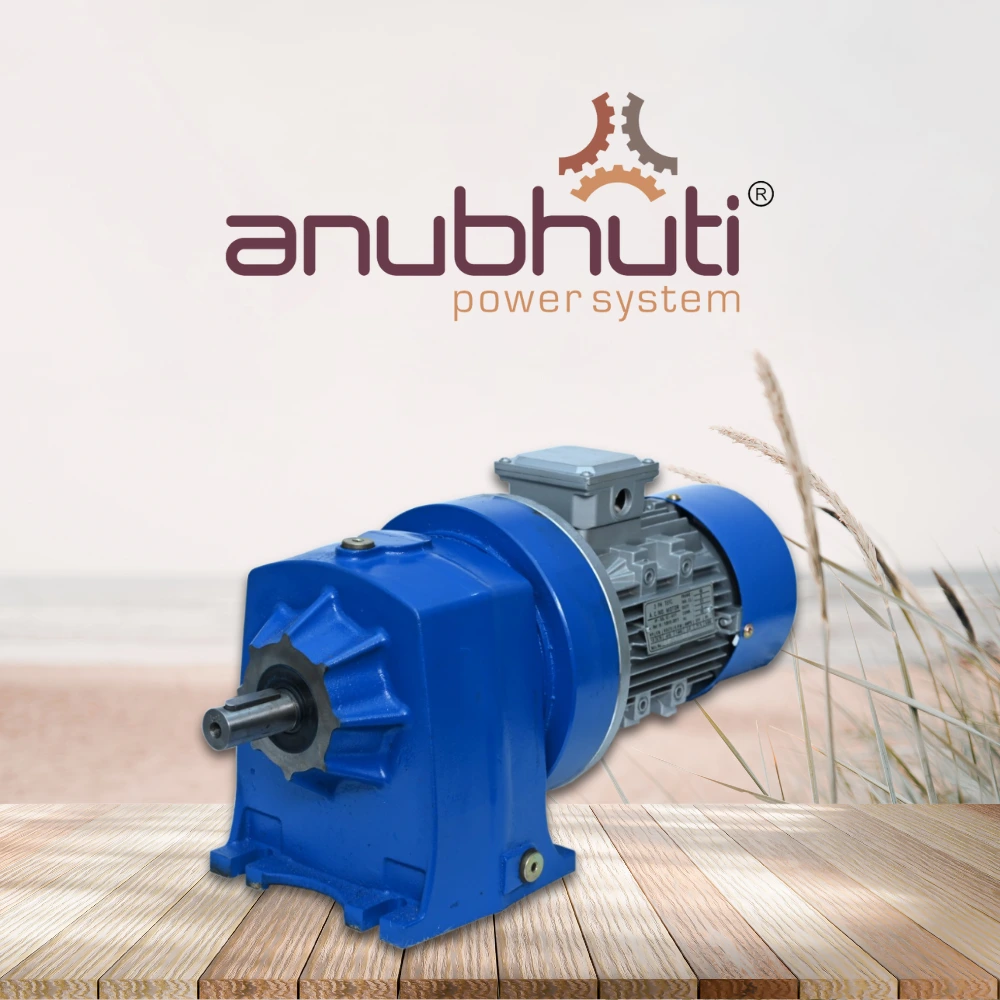

General:- ANUBHUTI Geared Motors and inline helical gear reducer have been developed in our factory to give co-axial,and compact and reliable mode of speed reduction at high torque.

The gear casings are manufactured from high grade cast iron and are liberally designed for maximum heat dissipation and cool running. Gear and pinions are made from special case hardening alloy steel and are specially heat-treated.

Range:- In addition to our standard range of production of 0.16 HP to 30 HP,0.1 to 700 RPM as detailed in our price list,other sizes can be offered on specific enquires.

Motor:- Electric motors used in gear units are totally enclosed,fan cooled,squirrel cage induction motors suitable for operation on 415V,50HZ,3 Phase,AC supply,Generally IP 54 enclosure,with class B insulation and as per IS : 325 – 1978. However motors with different electrical and mechanical characteristic can also be offered.

Lubrication:- Bearing and gears are lubricated by normal splashing of oil and requires no special attention for long peroids. First fill oil is not supplied. All geared motors are provided with oil filler cum breather plug,drain plug and oil level indicator.The first change of oil should be made after approximately 350 to 450 operating hours. The recommended oils are Indian oil Servo mesh SP 60 or Hindustan Petroleum – Gervil EP 5 or 4 equivalent.

Duties:- Normal duty and heavy duty series gaered motors are available under our regular manufacturing program,Light duty and extra heavy duty series can be offered on specific enquires.
General guidance regarding proper selection of geared motor can be given supply of data regarding HP output speed,nature of load etc.

Testing:- All components are tested to rigid standard of tolerances. Assembled gear units are tested on no load for noise level,oil leakage and temperature rise.

Data to be furnished with enquiry:- The following details are to be furnished along with enquiry.
1. Load in HP or KW
2. Torque in N.M.
3. Supply voltage and frequency details.
4. Operating condition such as peak or shock loads giving magnitude and duration,ambient conditions,(i.e.)temperature humidity etc.,number of operating hours per day and mounting positing.

Salient Features:- 1.Geared motors,incorporation liberally designed and perfectly alignedpinions,gears and bearings are compact light in weight and provide a very economic,efficient and trouble free method of speed reduction.
2. Geared motors are suitable for reversible drive and are supplied for variuos mounting positions depending upon requirement.
3. Geared motors incorporate electric motors of proven design evolved over 25 years manufacturing experience.
4. Geared motors are available at very short notice.

https://www.anubhutipowersystem.com/wp-content/uploads/2021/03/img-18.png
Give us a call
98256 76758
90818 27474
Email us
info@anubhutipowersystem.com

Quick Contact

Foot Mounted Gear Motors Principal Dimensions

Type A B C E F N S G G1 H I K
1032A - 71
              80
              90S
              90L
              100L
140 140 22 170 180 40 11.5 139
157
181
181
202
105
112
148
148
163
100 88 460
484
499
524
561
1033A - 71
              80
              90S
              90L
              100L
170 140 22 200 180 40 11.5 139
157
181
181
202
105
112
148
148
163
100 88 492
516
531
556
593
1042A - 71
              80
              90S
              90L
              100L
              112M
165 180 28 200 220 50 14 139
157
181
181
202
227
105
112
148
148
163
177
112 110 498
521
536
561
597
619
1043A - 71
              80
              90S
              90L
              100L
              112M
200 180 28 235 220 50 14 139
157
181
181
202
227
105
112
148
148
163
177
112 110 537
560
575
600
636
658
1052A - 71
              80
              90S
              90L
              100L
              112M
              132S
              132M
200 205 30 240 250 56 18 139
157
181
181
202
227
267
267
105
112
148
148
163
177
207
207
132 142 553
573
588
613
646.5
668.5
735
773
1053A - 71
              80
              90S
              90L
              100L
              112M
              132S
              132M
240 205 30 280 250 56 18 139
157
181
181
202
227
267
267
105
112
148
148
163
177
207
207
132 142 592
612
627
652
685.5
707.5
774
812
1062A - 80
              90S
              90L
              100L
              112M
              132S
              132M
              160M
              160L
230 250 40 280 310 70 23 157
181
181
202
227
267
267
324
318
112
148
148
163
177
207
207
225
255
160 150 610
617
642
678.5
700.5
762
800
903
951
1063A - 80
              90S
              90L
              100L
              112M
              132S
              132M
              160M
              160L
280 250 40 330 310 70 23 157
181
181
202
227
267
267
324
318
112
148
148
163
177
207
207
225
255
160 150 660
667
692
728.5
750.5
812
850
953
1001
1072A - 90S
              90L
              100L
              112M
              132S
              132M
              160M
              160L
260 280 45 320 350 80 27 181
181
202
227
267
267
324
318
148
148
163
177
207
207
225
255
180 189 679
704
742.5
764.5
820
858
956
1004
1073A - 90S
              90L
              100L
              112M
              132S
              132M
              160M
              160L
310 280 45 370 350 80 27 181
181
202
227
267
267
324
318
148
148
163
177
207
207
225
255
180 189 735
760
798.5
820.5
876
914
1012
1060

Type K1 K2 O P P3 A1 d L L1 M T U D
1032A - 71
              80
